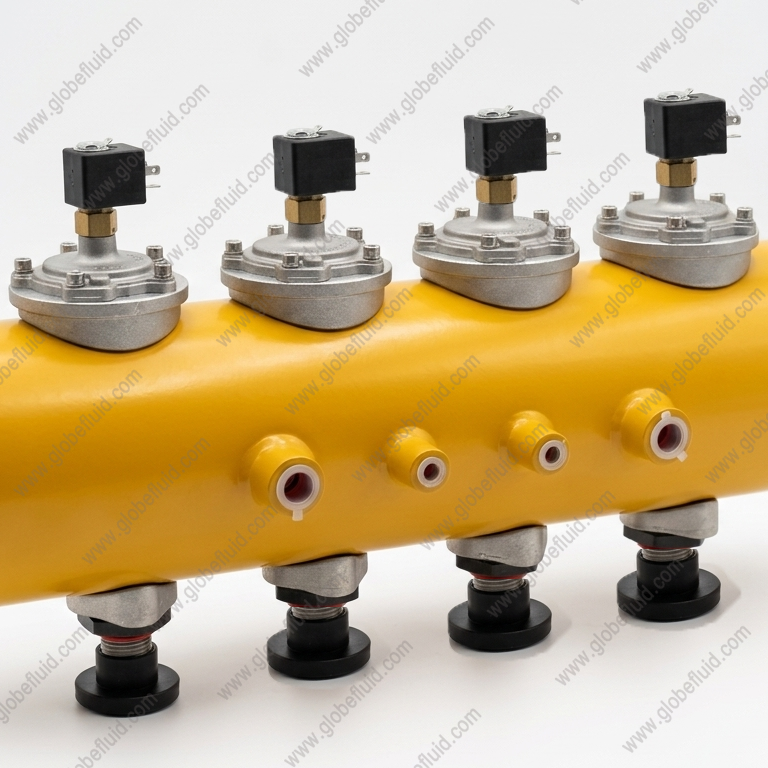

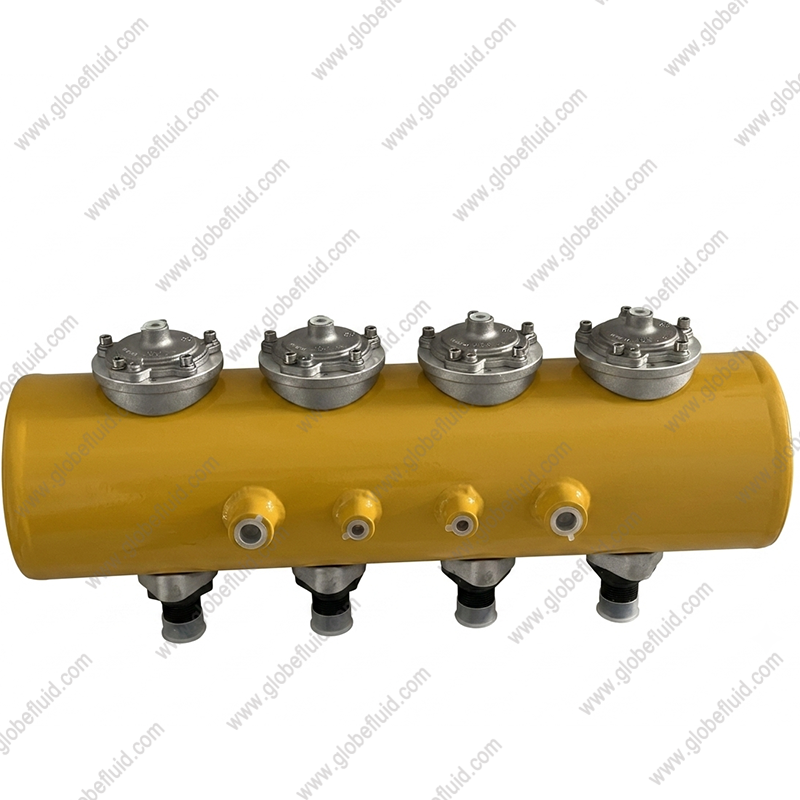

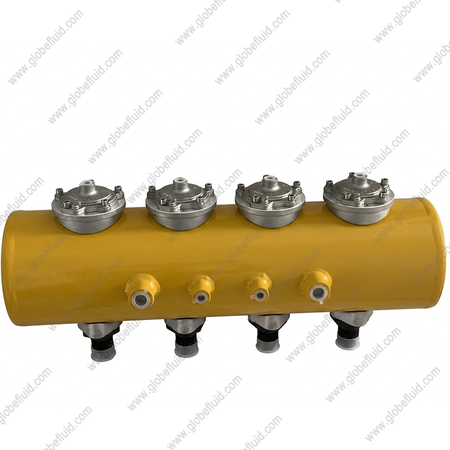

6" Industrial Pulse Jet Valve Header Tank

Brochure Copy: 6" Industrial Pulse Jet Valve Header Tank
🛠️ Product Overview
This series of pulse jet header tanks (manifolds) is engineered for high-efficiency pulsing in industrial dust collection systems. Constructed from premium, heavy-duty 6" (DN150)pressure vessel-grade steel, the header tank provides an exceptionally large air volume to ensure a stable air supply. Optimally matched with 1" (DN25) port size pulse jet valves, it offers flexible configuration ranging from 2 to 10 outlets. The entire assembly delivers excellent airtightness and minimal flow resistance, making it an ideal core component for maximizing baghouse cleaning efficiency.

✨ Key Advantages
High Volume for Stable Pulsing: The 6-inch large diameter design provides a substantial air storage capacity. This effectively prevents sharp pressure drops during continuous multi-valve pulsing, ensuring each blast delivers strong and consistent cleaning impact.

Flexible Customization (2 to 10 Outlets): Designed to adapt to various dust collector tube sheet layouts. Whether for small single-unit baghouses or large-scale centralized dust collection systems, it can be precisely fabricated with 2 to 10 valve seats, significantly reducing field piping and connection joints.

Optimized Fluid Dynamics: The internal flow path is specifically streamlined for 1" pulse jet valves. It minimizes airflow resistance and allows a massive, instantaneous release of air, enabling the pulse valve to reach its peak flow velocity immediately for deep bag cleaning.

Industrial-Grade Workmanship: Every header tank undergoes fully automated precision welding and passes rigorous high-pressure airtightness and structural endurance tests prior to dispatch. Finished with a highly corrosion-resistant industrial coating (available in custom colors), it offers excellent wear resistance and anti-aging properties for harsh outdoor and dusty environments.

📊 Technical Specifications
Header Tank Diameter: 6 inches (approx. 165mm)

Compatible Valve Port Size: 1 inch (DN25)

Available Outlets/Ways: 2, 3, 4, 5, 6, 7, 8, 9, or 10 ways (Center-to-center distance can be customized per drawings)

Applicable Medium: Clean compressed air

Standard Working Pressure: 0.2 MPa to 0.8 MPa

Applications: Baghouse dust collector systems across cement, steel & metallurgy, thermal power, chemical, and biomass boiler industries.
