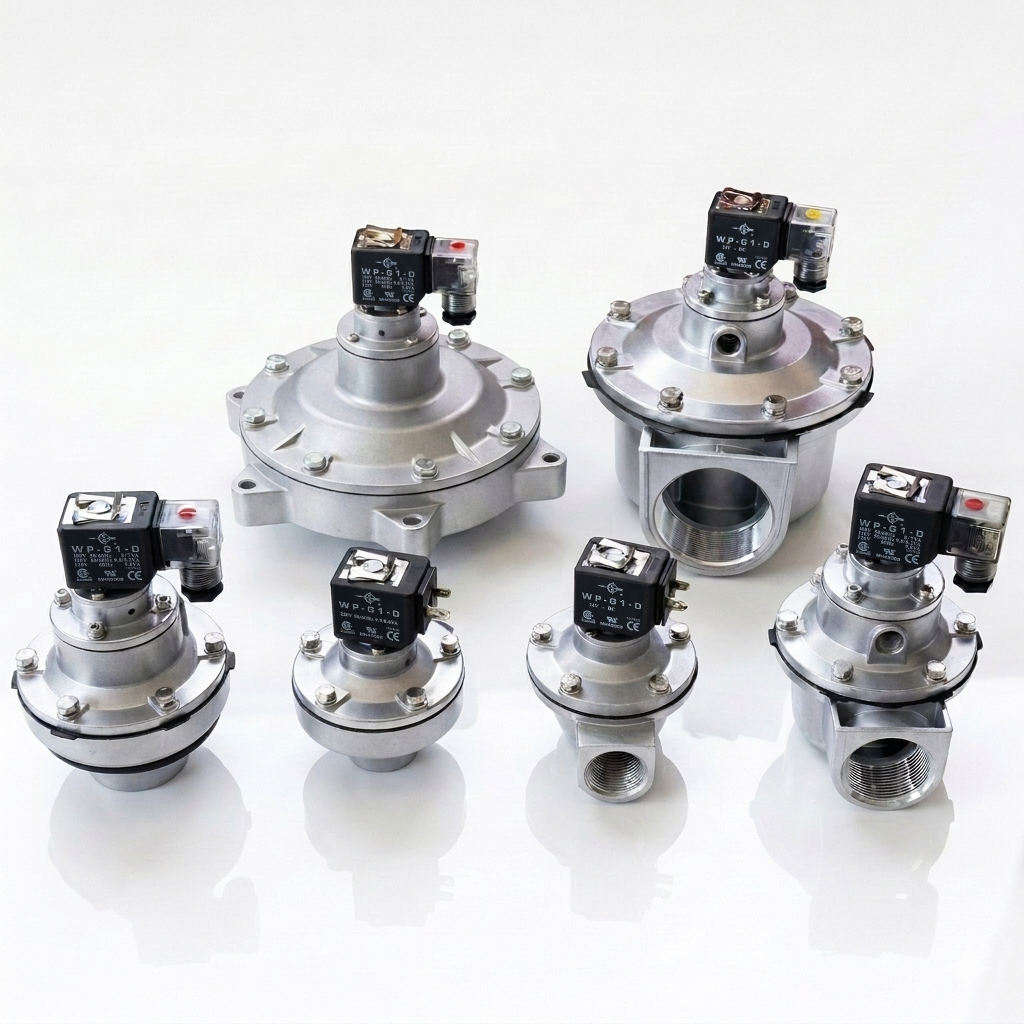

CS FLUIDPOWER pulse jet valves
Regular price
$49.00
inc. VAT
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Free shipping
100% secure payments
Industry leading quality
Got questions?
Feel free to get in touch
Ask an expert!
Z SERIES — THREADED VALVES
1. Model Specifications
| MODEL | NOM. SIZE | BODY MATERIAL | FLOW Kv | FLOW Cv | PRESSURE RANGE | Power AC(VA) | Power DC(W) | KITS MODEL NBR | KITS MODEL VITON | WEIGHT kg |
|---|---|---|---|---|---|---|---|---|---|---|
| Z20G | 3/4 | Aluminum | 15 | 18 | 0.2~0.8mpa | 12 | 12 | 20N | 20V | 0.65 |
| Z25G | 1 | Aluminum | 25 | 28 | 0.2~0.8mpa | 12 | 12 | 25N | 25V | 0.8 |
| Z40G | 1-1/2 | Aluminum | 45 | 52 | 0.2~0.8mpa | 12 | 12 | 40N | 40V | 1.4 |
| Z50G | 2 | Aluminum | 77 | 89 | 0.2~0.8mpa | 12 | 12 | 50N | 50V | 2.4 |
| Z62G | 2-1/2 | Aluminum | 92 | 108 | 0.2~0.8mpa | 12 | 12 | 62N | 62V | 3.5 |
| Z76G | 3 | Aluminum | 145 | 168 | 0.2~0.8mpa | 12 | 12 | 76N | 76V | 4.3 |
| Z100G | 4 | Aluminum | 159 | 176 | 0.2~0.8mpa | 12 | 12 | 100N | 100V | 7.3 |
| Z20GS | 3/4 | 304 SS | 15 | 18 | 0.2~0.8mpa | 12 | 12 | 20N | 20V | — |
| Z25GS | 1 | 304 SS | 25 | 28 | 0.2~0.8mpa | 12 | 12 | 25N | 25V | — |
| Z40GS | 1-1/2 | 304 SS | 45 | 52 | 0.2~0.8mpa | 12 | 12 | 40N | 40V | — |
2. Product Parameters
- Body: Aluminum OR 304 SS
- Armature: 403FR SS
- Spring: 304 SS
- Diaphragm: NBR or VITON
- Screws: 302 SS
- Diaphragm life: 1 million times
- Working medium: Clean air
- Voltage: AC24V / AC110V / AC120V / AC200V / AC220V / AC230V / AC240V / AC380V / DC12V / DC24V
-
Temperature Range:
- NBR: -25~85°C
- VITON: -25~232°C
- Recommended on-time range: 50~50c
- Coil Approvals: UL CE CSA
- Coil Model: WP-G1-D
- Type: Normally closed
3. Dimensions in mm (and inches)
Z20G / Z20GS
- Diameter: Φ80
- Total Height: ~125 mm
- Inlet/Outlet Size: G3/4"
- Total Length: 88 mm
- Center Distance: 48 mm / 18 mm
Z25G / Z25GS
- Diameter: Φ96
- Total Height: ~132 mm
- Inlet/Outlet Size: G1"
- Total Length: 108 mm
- Center Distance: 60 mm / 22 mm
Z40G / Z40GS
- Diameter: Φ112
- Total Height: ~178 mm
- Inlet/Outlet Size: G1-1/2"
- Total Length: 131 mm
- Center Distance: 75 mm / 24 mm
Z50G
- Diameter: Φ160
- Total Height: ~212 mm
- Inlet/Outlet Size: G2"
- Total Length: 180 mm
- Center Distance: 100 mm / 30 mm
Z62G
- Diameter: Φ188
- Total Height: ~228 mm
- Inlet/Outlet Size: G2-1/2"
- Total Length: 204 mm
- Center Distance: 110 mm / 30 mm
Z76G
- Diameter: Φ200
- Total Height: ~260 mm
- Inlet/Outlet Size: G3"
- Total Length: 220 mm
- Center Distance: 120 mm / 32 mm
